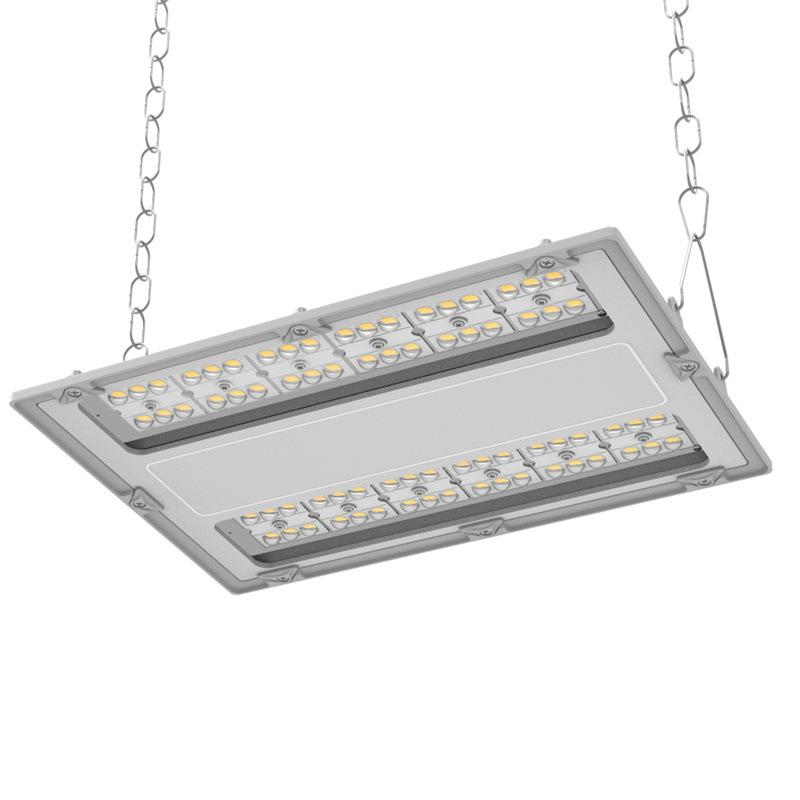

LED Linear High Bay Light
Description
Patent housing design with perfect heat dissipation.Different beam angle 120°*120°, 60°*120°, 90°*120°.Two mounting type:suspending mounting and bracket mounting for option.Simple and pretty appearance, exclusive high-end products. Surely will bring you incomparable refreshing experience.
Highlights
- High efficiency 160-170lm/w, supper bright.
- Long lifespan, 5 years warranty with Sosen & Mean Well driver
- DALI, ZigBee, motion sensor, and 1-10V dimmable are available
- CE, RoHS,SAA,DLC, ETL certificates approved.
联系我们获取价格
对本产品感兴趣？立即联系我们获取详细价格与产品信息。
产品详情
| Product specification | |
| Model No. | RL-LB002 |
| Rated Power | 100W-300W |
| Input Voltage | AC100-277V, 50/60Hz, 0.45A(at 220v)； 347/480V AC for option |
| PF: | >0.97 |
| IP Grade: | IP65 |
| THD: | 10%（at 230v, 50Hz) |
| Surge protection: | L/N-PE: 6KV, L-N: 4KV; 20KV version is for option. |
| LED Parameters | |
| LED chip | SMD3030 LED |
| Light Efficiency | 140-170lm/w |
| Color Temperature | 2700-7000k |
| CRI | >70Ra or 80Ra |
| Beam Angle | 120°x120°; 60°x100°；30°x100° |
| Mechanical Specification | |
| Body Material | Aluminum |
| Lens Material | PC lens |
| Body color | White/grey |
| Operating Temperature | -35℃ – 50℃ |
| Net W./Gross W | 6.0KGS / 7.0KGS(one piece) |
| Packing size | 62x39x17CM, One piece in one carton |
| Warranty | 5 years warranty |
| Certificates | CE, RoHS, SAA, ETL, DLC |

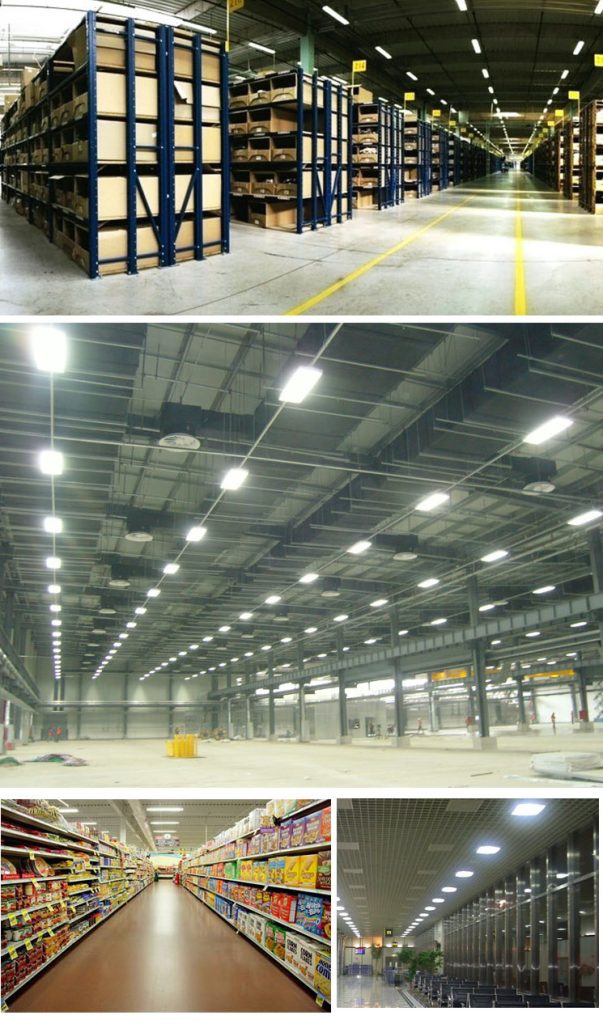

Application
(1). Warehouse,factory and workshops;
(2). Highway toll station and gas station;
(3). Exhibition hall and supermarket;
(4). Gymnasium and supermarket;
(5). Residential area, etc.
