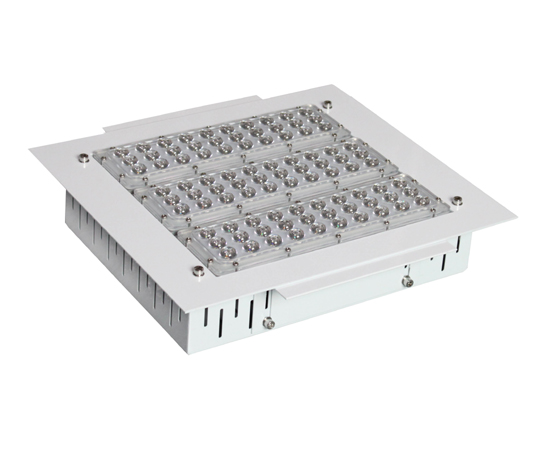

LED Gas Station Canopy Light
Description
Using high quality 3030 chips, LM-80 report and IES data available.The whole lamp with the powder coating is brighter, without fading and corrosion; Built-in light module, easy maintenance and low maintenance costs. Dust-proof and waterproof, IP65.
Highlights
- 100-277VAC,50 / 60HZ; PF>=0.97; IP65; 5 years warranty
- 130-140lm/w;beam angle 60°, 90°; Aluminum Housing; 3030 SMD LED
- 150w led equivalent 400-600W HPS/HID
- Installations:Recessed, Pendant or Surface Mounted (Optional)
产品详情
| Product specification | |
| Model No. | RL-CP001 |
| Rated Power | 100W-240W |
| Input Voltage | AC100-277V, 50/60Hz, 0.45A(at 230v)；347/480V AC for option |
| PF: | >0.97 |
| IP Grade: | IP65 |
| THD: | 10%（at 230v, 50Hz) |
| Surge protection: | L/N-PE: 10KV, L-N: 6KV; 20KV version is for option. |
| LED Parameters | |
| LED chip | SMD3030 LED |
| Light Efficiency | 150-160lm/w or 170-180Lm/W |
| Color Temperature | 2700-7000k |
| CRI | >70Ra or 80Ra |
| Beam Angle | 60°, 90° |
| Mechanical Specification | |
| Body Material | Aluminum |
| Lens Material | PC lens |
| Body color | white |
| Operating Temperature | -35℃ – 50℃ |
| Net W./Gross W | 5.5KGS /6.5KGS(one piece) |
| Packing size | 40x40x20CM, One piece in one carton |
| Warranty | 5 years warranty |
| Certificates | CE, RoHS, SAA,LM79,LM80 |
Features:
1.CE&ROHS certified
2.Low power consumption , high luminous efficiency and energy saving
3. Easy to install and use.
4.High efficiency,high accuracy,and long-life constant current LED power supply,the efficiency can reach as high as 91%
5.No risk of mercury emission, No UV or RF interfcernce, No mercury or lead , environmental protection
6.High heat conductivity, low luminous decay, pure light color and no ghosting.
7.Integrative design for heat sink and housing; The LED is closely connected to the surface.
The heat From the LED is removed through the heat dissipation wing and also by air ventilation.
8.The surface is passed through anodic oxidation treatment. Its structure is compact and beautiful.
9.Using high quality aluminum for production,fine workmanship,elegant appearance10.Recommend the use of warm white and white.Long life span with 50,000 hrs.

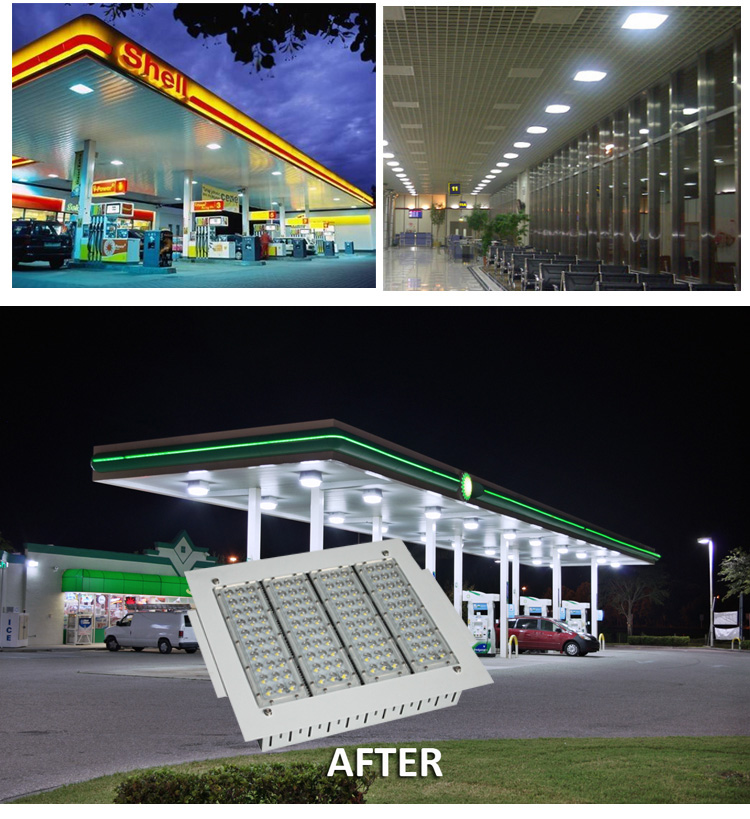

Application
Led canopy light widely used in Gas Station, Shopping Mall, Garage, Station,Workshops, Factories, Warehouse, Storehouses,
Toll stations, Supermarkets, Exhibition halls, Gymnasiums, Square,and some other places where need lighting.
