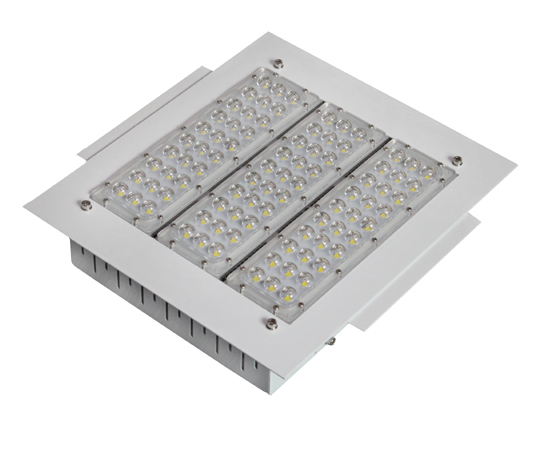

LED Canopy Gas Station Light
Description:
Using high quality 3030 chips, LM-80 report and IES data available.
The whole lamp with the powder coating is brighter, without fading and corrosion;
Built-in light module, easy maintenance and low maintenance costs.
Dust-proof and waterproof, IP65.
Highlights:
100-277VAC,50 / 60HZ; PF>=0.97; IP65; 5 years warranty
130-140lm/w;beam angle 60°, 90°; Aluminum Housing; 3030 SMD LED
150w led equivalent 400-600W HPS/HID
Installations:Recessed, Pendant or Surface Mounted (Optional)
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
| Product specification | |
| Model No. | CP01 |
| Rated Power | 50-200W |
| Input Voltage | AC100-277V, 50/60Hz, 0.45A(at 230v)；347/480V AC for option |
| PF: | >0.97 |
| IP Grade: | IP65 |
| THD: | 10%（at 230v, 50Hz) |
| Surge protection: | L/N-PE: 10KV, L-N: 6KV; 20KV version is for option. |
| LED Parameters | |
| LED chip | SMD3030 LED |
| Light Efficiency | 150-160lm/w |
| Color Temperature | 2700-7000k |
| CRI | >70Ra or 80Ra |
| Beam Angle | 60°, 90° |
| Mechanical Specification | |
| Body Material | Aluminum |
| Lens Material | PC lens |
| Body color | white |
| Operating Temperature | -35℃ – 50℃ |
| Net W./Gross W | 5.5KGS /6.5KGS(one piece) |
| Packing size | 40x40x20CM, One piece in one carton |
| Warranty | 5 years warranty |
| Certificates | CE, RoHS, SAA,LM79,LM80 |
